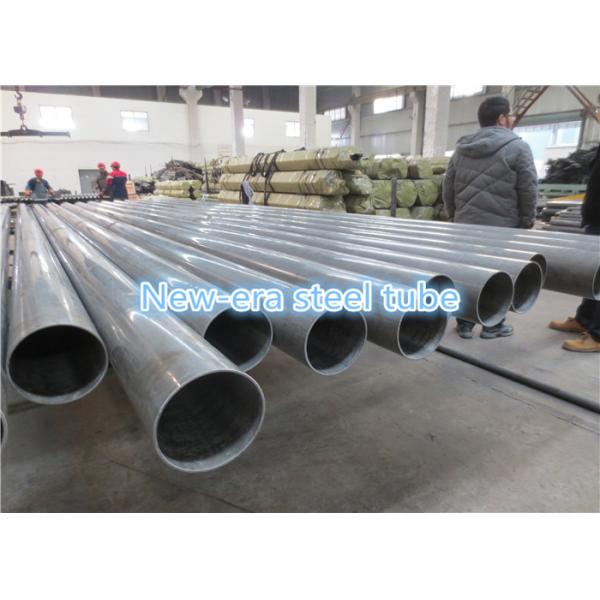

EN10305-4 Dom Seamless Cold Drawn Tubes Plastic Pipe Cap Round Shape

Product Categories

NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: EN103054 Dom Seamless Cold Drawn Tubes Plastic Pipe Cap Round Shape
Brand: New Era
Price: 1 USD

Brand Name : New Era

Model Number : EN10305-4

Certification : TS16949

Place of Origin : China

MOQ : 5 tons

Price : Negotiation

Payment Terms : T/T

Supply Ability : 300 tons/month

Delivery Time : 45 days

Packaging Details : Anti Rust Oil Protection, in seaworthy packing material, in hexagonal bundles or in wooden box

Material : E215, E235, E355

Heat Treatment : +N

OD Size : 5.0-220mm

WT Size : 0.5-30mm

End Protecto : Plastic Pipe Cap

Surface : Customers't Requirement

Shape : Round

Usage : Hydraulic And Pneumatic Power Systems

Contact Now

Products Description:

EN10305-4 Seamless Cold Drawn Tubing DOM Steel Pipe for Hydraulic and Pneumatic Power Systems

Steel Grade/Steel Material:

Chemical composition(cast analysis)^a

Steel Grade		% by mass
Name	Number	C max	Si max	Mn max	P max	S max	Al_tot min
E215	1.0212	0.10	0.05	0.70	0.025	0.015	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.015	-
E355^b	1.0580	0.22	0.55	1.60	0.025	0.015	-
^a Elements not included in this table (but see footnote b) shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steel making process. ^b Additions of Nb, Ti and V are permitted at the discretion of the manufacturer. The content of these elements shall be reported.

Mechanical properties at the room temperature

Steel Grade		Yield strength^a	Tensile strength	Elogation
Name	Number	R_eH min Mpa	R_m min Mpa	A min %
E215	1.0212	215	290 to 430	30
E235	1.0308	235	340 to 480	25
E355	1.0580	355	490 to 630	22
^a For tubes with outside diameter ≤ 30 mm and wall thickness ≤ 3 mm, the R_eH minimum values are 10 MPa lower than the values given in this table. NOTE: The steel grades defined in this part of EN 10305 have an intrinsic minimum transverse impact energy of 27 J at 0 °C.

Delivery Condition:
+N

Size Range:
OD: 5.0-220mm
WT:0.5-30mm
Length: max 7000mm

DOM Steel Tube Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
QUALITY ASSURANCE

Production Processs:

Seamless tube and Cold Drawing or Cold Rolling Production
